About this listing

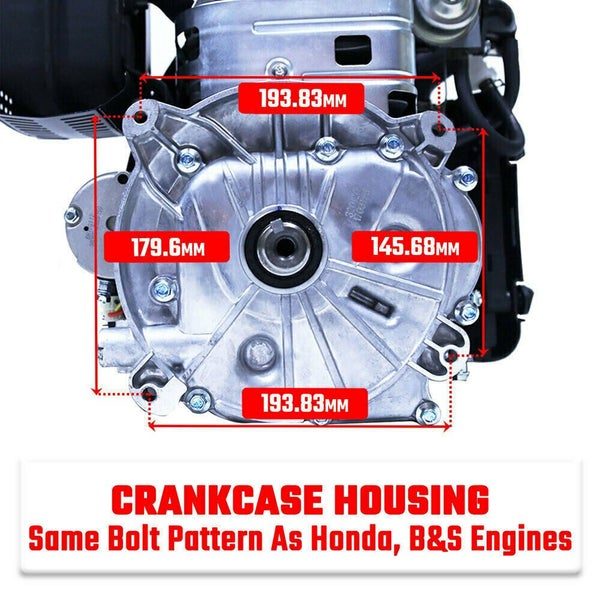

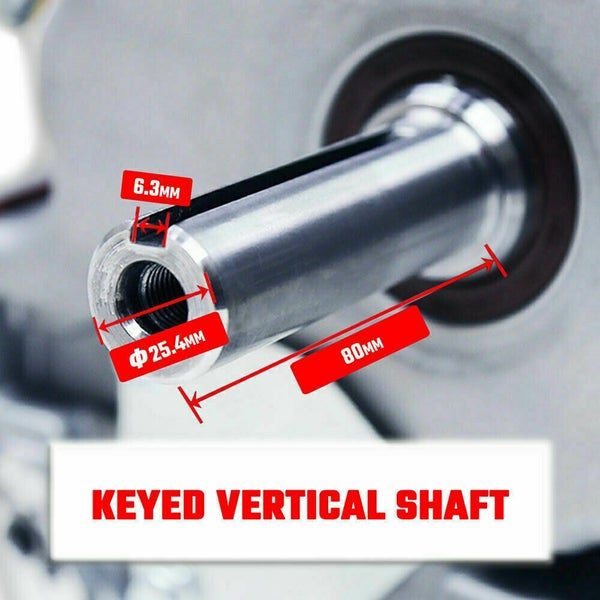

Note: Send from Australia Warehouse. It usually takes 7-14 working days to arrive. Description Engine Single Cylinder 4-Stroke (OHV) Displacement 547 CC Bore & Stroke 94.5 x 78 mm Compression Ratio 8.7:1 Net Power 13.2 kW @3600rpm Net Torque 39.5 Nm @2500rpm PTO Shaft Rotation Counterclockwise (vertical output) Ignition System Transistorized Magneto Ignition Starting System Electric Starter Carburetor Flat Suction Valve Carburetor Governor System Centrifugal Mechanical Engine Oil Capacity 1.5 L Bolt Pattern Our engine has Briggs & Stratton, or Honda bolt pattern. If you have a B&S or Honda engine, the bolt pattern will be a perfect match. The bolt holes on the engine will require thread tapping. Output Shaft Size The output shaft on our engine is 1” (25.4mm). Most ride on mower engines with HP ratings between 10 to 18 hp have 1” shafts. But please make sure this is the same for your mower. Engine Displacement The displacement of the new engine shall not be less than your current engine to avoid any underpower issue. Physical Size If your mower has only limited space for the engine to fit into, you will need to check the physical dimensions of our engine carefully before purchasing. Please note this is a universal fitment engine and some modifications to the engine or mower might be needed, including but not limit to the muffler, exhaust system and/or electrical wiring. If you are not familiar or confident to do so, please consult small engine mechanic before purchasing, installing and using. All customers must notice within 10 days after receipt in regards any return.We are not liable for any returns if customers simply only change mind or order by mistake.Customer need to pay return postage plus 15% restocking fee along with orinigal packing and all accessories. We are not responsible for any return postage cost for any warranty claim under our company's policy.If we receive an item without a notification,a return will not be processed.

Condition

New

Category

Business, farming & industry

Location

Auckland City, Auckland

Shipping

Pickup · Shipping
