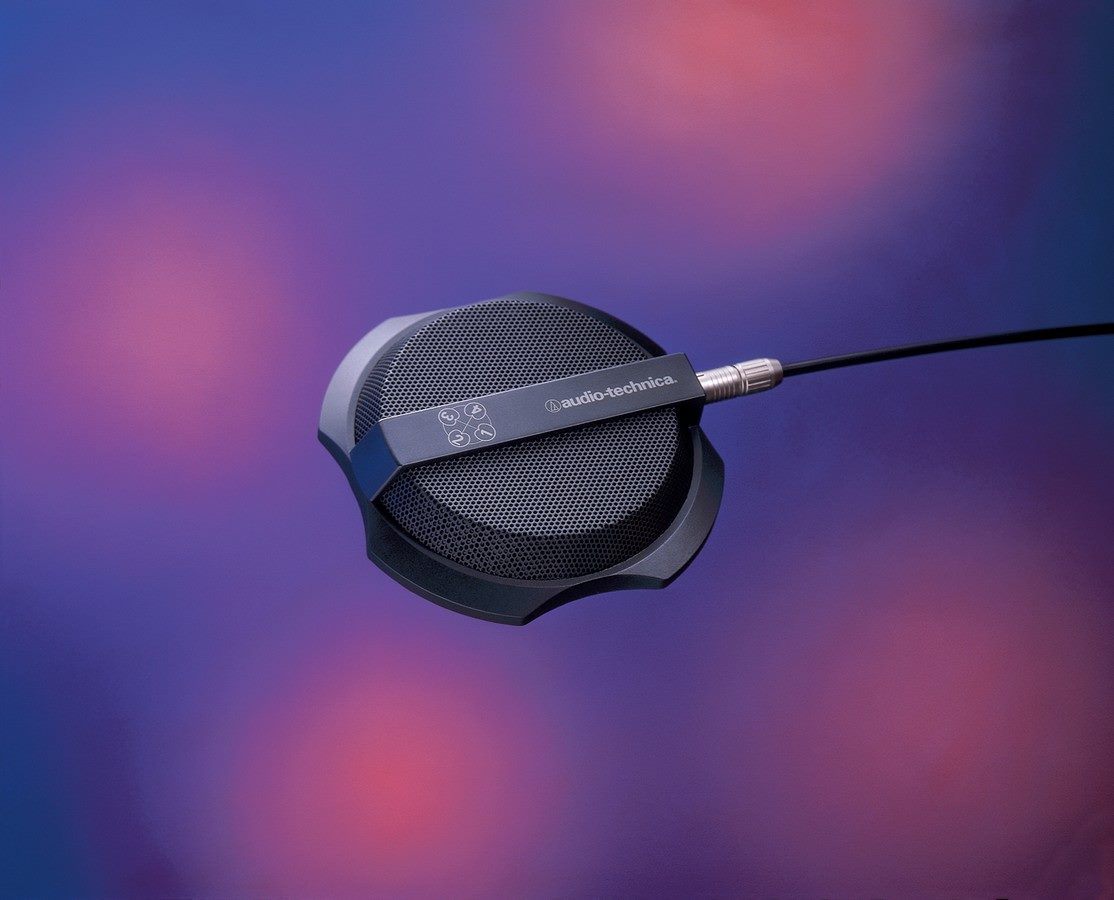

70Hz-16kHz 48V Integral PSU The AT854R "quad mic" is ideal for a variety of video and audio conferencing applications Four independent cardioid condenser elements in one housing Four shielded, balanced lines in a single, flexible 30' (9.1 m) cable Individual connection and control of each channel Low-profile design for minimum visibility ELEMENTS Fixed-charge back plate, permanently polarized condenser POLAR PATTERN Cardioid (x4) FREQUENCY RESPONSE 70-16,000 Hz OPEN CIRCUIT SENSITIVITY -37 dB (14.1 mV) re 1V at 1 Pa IMPEDANCE 100 ohms MAXIMUM INPUT SOUND LEVEL 134 dB SPL, 1 kHz at 1% T.H.D. DYNAMIC RANGE (typical) 105 dB, 1 kHz at Max SPL SIGNAL-TO-NOISE RATIO 65 dB, 1 kHz at 1 Pa PHANTOM POWER REQUIREMENTS 9-52V DC, 2 mA typical (each channel) WEIGHT 465 g DIMENSIONS 150.0 mm maximum diameter, 27.6 mm height OUTPUT CONNECTORS Microphone: Neutrik MiniCon (9 pins used) Cable: Four 3-pin XLRM-type CABLE 9.1 m long, 7.0 mm diameter, shielded, with a miniature multi-contact plug at microphone end and four independent XLRM-type output connectors
- Condition
- New
- Category
- Music & instruments
- Location
- Auckland City, Auckland
- Shipping
- Pickup
AT854R :: AT854R Surface Boundary Mic Condenser Cardioid 4 Hemisphere
Listed 5h ago
$890
Auction from $890
FilterMe searches Trade Me then hides sellers you block. Bid or buy on Trade Me.
Jansen is the official NZ agent for everything we sell. We are able to offer the total package and back it up with service that only the manufacturers representative can supply, we have been in the business since 1949 and have gained a reputation second to none. Images in the auction may not be the actual item, may be a generic manufacturers picture and may contain other items for demonstration pu
